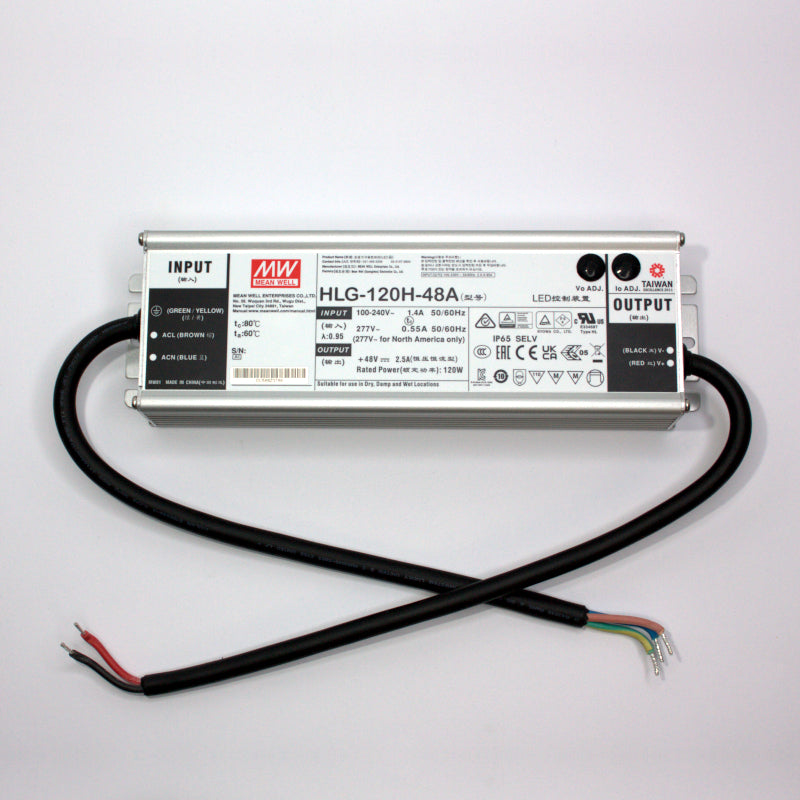

MW HLG-120H-48A LED driver

LED power supply in metal housing

This LED power supply in a metal housing with an input voltage range of 90 – 305 V/AC is designed for use with our SiriusX.3 plant lamp.

• Operating voltage: 115 + 230 V/AC
• Input voltage (min.): 90 V/AC
• Input voltage (max.): 305 V/AC
• Output voltage (max.): 48 V/DC (adjustable via integrated potentiometer)
• Power range: 120 W (max)
• Output current (max.): 2.5 A (adjustable via integrated potentiometer)
• Type: Switched mode
• 1 output, 1 input
• Protection class: IP65 (for indoor and outdoor applications)
• Connection: Cable, open end
• Special features: PFC circuit, overload protection, adjustable
• Dimensions (length × width × height [mm]): 220.00 × 68.00 × 38.8
• Weight: 1116.67 g
• Manufacturer: Mean Well
• Manufacturer no.: HLG-120H-48A
• EAN: 4711287449579

More details about the SiriusX.3 plant lamp can be found on our homepage.
